Category: Special events

  • Australia Day 2017 at the Opera House

    Australia Day 2017 1

    Directed by the highly-awarded John Foreman, Australia Day 2017 – Live at the Sydney Opera House brought together a collection of Australia’s best talent, including Tina Arena, Guy Sebastian, Human Nature and Dami Im. The concert was hosted by Grant Denyer and Kerri-Anne Kennerley.

    JPJ Audio provided audio production with Will King in charge of the design and running front of house. It has been well publicized that the forecourt of the Opera House is a tricky venue due to its’ strict noise control limit. Added to that was the fact that the show was broadcast live and the television producers wanted the Harbour Bridge as a backdrop.“This meant that the stage wasn’t orientated in a way that was helpful in achieving that sound level,” commented Will. “The sound was directed towards the Botanical Gardens and in places, could hit the sandstone wall. We had to do our best to deliver a sound system that would shoot down enough to not hit the wall, only the audience.

    The PA system comprised of L-Acoustics K1, ten a side, with a side hangs of KARA enclosures to cover the steps of the Opera House, as well as SB28 subs. A single mono delay hang of eight deep KUDO enclosures was also utilized. A large number of Clair 12am wedges covered the stage and the thrust that jutted out into the audience. Usually a thrust allowing performers in front of the PA can cause problems but not in this case due to the concert’s strict noise limits.

    Australia Day 2017 2That was probably the only good thing about having a strict noise limit!” laughed Will. “I used a DiGiCo SD10 for control and it was the first time I didn’t have a single channel to plug anything into. The entire console was full – if anyone else had turned up I don’t know what we would have done!

    It was important that Will remembered the larger audience was at home watching the concert on the television and he had to be careful not to do anything that would affect the broadcast.

    For example, feedback is an absolute no-no on TV,” he elaborated. “If it happens once or twice at a gig, you can get away with it but with television it’s very noticeable in the quiet of your living room as opposed to a noisy gig.
    Those who have seen the broadcast of the show will remember what appeared to be a momentous audio fail when Grant Deyner’s microphone didn’t appear to work for what seemed like an age. However, JPJ are relieved to be able to state that the microphone was working perfectly at the gig.

    Tristan Farrow ran monitors using a DiGiCo SD5 console.

    Photos:

    ©Troy Constable

  • A Day On The Green

    ADOTG 1

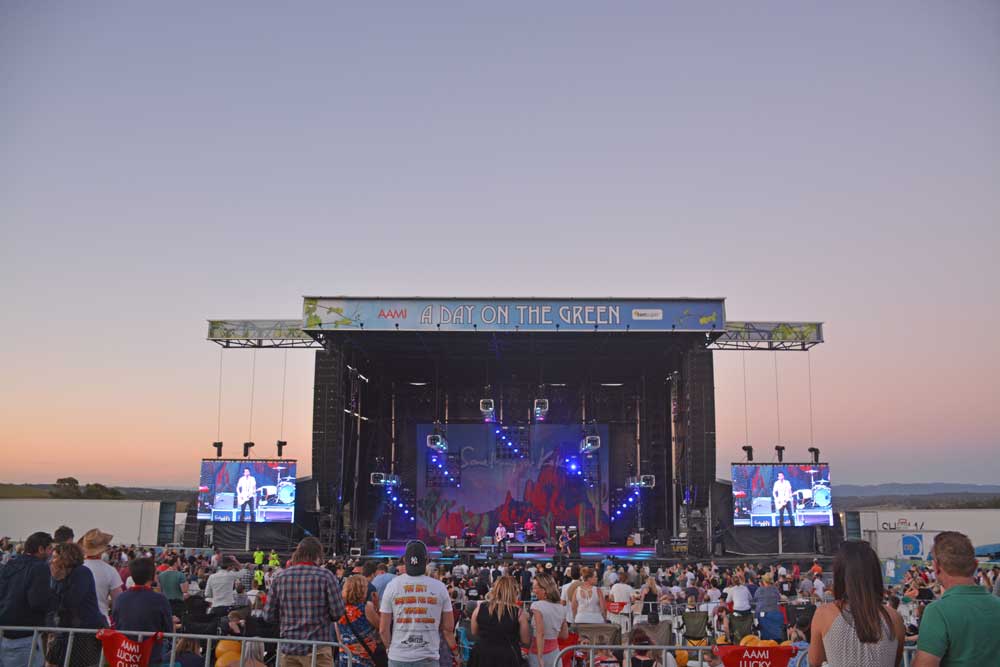

    Promoters Michael and Anthea Newton of Roundhouse Entertainment began A Day On The Green in Victoria with the first show on Australia Day 2001. Since then it has grown to become firmly established as one of Australia’s most successful and respected outdoor concert events.

    A glittering array of International and Australian stars have performed during the past fifteen years providing unforgettable musical memories. A Day On The Green runs in the summer months from October – March with around thirty concerts per season in the all major wine-growing regions around Australia.

    This year kicked off at Bimbadgen Estate with the Monster National Tour featuring an all Australian line up including You Am I, Something For Kate and Spiderbait. As in previous years, JPJ Audio supplied crew and gear for the tour.

    FOH Systems Tech Ryan Fallis has done ADOTG for the past eight years and has experienced everything that nature can throw at an outdoor show. The Bimbadgen show was no exception with high winds at midday causing the stage to be shut down for over an hour, just when acts were about to sound check. Added to that was a large bushfire nearby that threatened to have the show cancelled.

    There’s been some terrible weather at ADOTG shows over the years,” remarked Ryan. “One year at Sirromet Wines in Queensland we had a lightning storm and we had to evacuate the stage – that was pretty dicey! There’s always some sort of weather event around ADOTG, one year the stage was actually under water but they still managed to get the gig going.

    As the ADOTG gigs travel the country the PA system is provided through the three JPJ offices in Sydney, Brisbane and Melbourne whilst the FOH package is toured. At Bimbadgen an L-Acoustic K1 rig out of Sydney was used comprising of twenty-four K1 boxes in the air for the mains, eight K1-SB in the air, twelve Kara underneath the mains, twenty four SB-28s on the ground, four Kara infills and for the sides ground stacked V-Dosc.

    It’s quite a few boxes but that’s needed to cover a field of that size,” added Ryan. “In Queensland we’ll have their V-Dosc system which sounds really good too. It’s a similar system box wise but we add a couple of rings of delays as well to get some extra coverage. In Melbourne we’ll pick up the d&b audiotechnik rig.

    At each ADOTG show engineers request the mixing console they require, in this case there were two Avid Profile consoles with JPJ’s Adrian Roche mixing monitors on a Yamaha PM5d.

    Gallery – click images to enlarge.




  • Clients Summer 2011

    Clients Summer 2011

    It was a busy summer for JPJ Audio, the merged operation of Jands Production Services and Johnston Audio. JPJ Audio provided audio and production services for theatre shows, television spectaculars, corporate events and numerous concerts. Here’s some of the shows we worked on:

    Festivals Theatre / Television House Systems
    Big Day Out Hairspray the Musical Luna Park Big Top
    Good Vibrations Festival The Boy From Oz State Theatre Sydney
    Laneway Festival Music of Andrew Lloyd  Webber Hordern Pavilion
    Sound Wave Festival Dr Zhivargo
    Future Music Festival Australia’s Got Talent
    Sound Relief 2 River Dance
    Concerts and Tours Concerts and Tours Corporate Events
    Bear Grylls Billy Connolly Live at the Apple Store
    Chris Isaak Cyndi Lauper Australia Day Live-Canberra
    Foo Fighters Live on the Harbour INXS Rose Bay Flood Relief
    Joe Cocker Kool and the Gang Mardi Gras
    Lionel Ritichie Nitro Circus Regional Tour Top Gear Live
    Ragga-muffin Rihanna Silver Party
    Santana Sting Symphonicity Tour The Sydney Kings
    Stone Temple Pilots Take 40 Live Lounge Sydney Myer
    Clipsal 500 V8 Race Concerts Usher at Acer Arena David Jones

  • The FIFA Fan Fest in Sydney

    Fanfest Darling Harbour

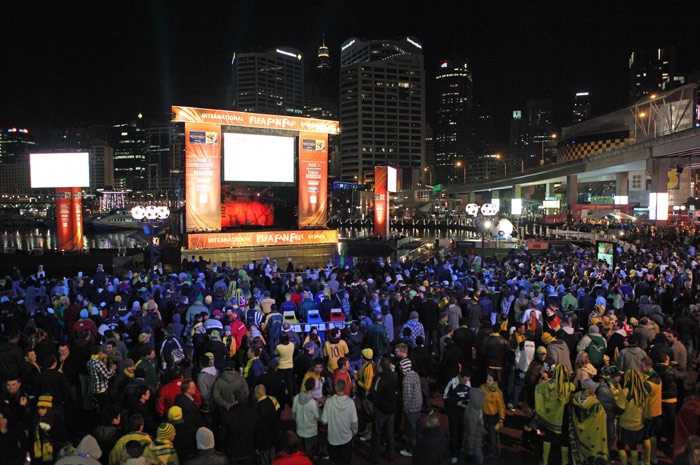

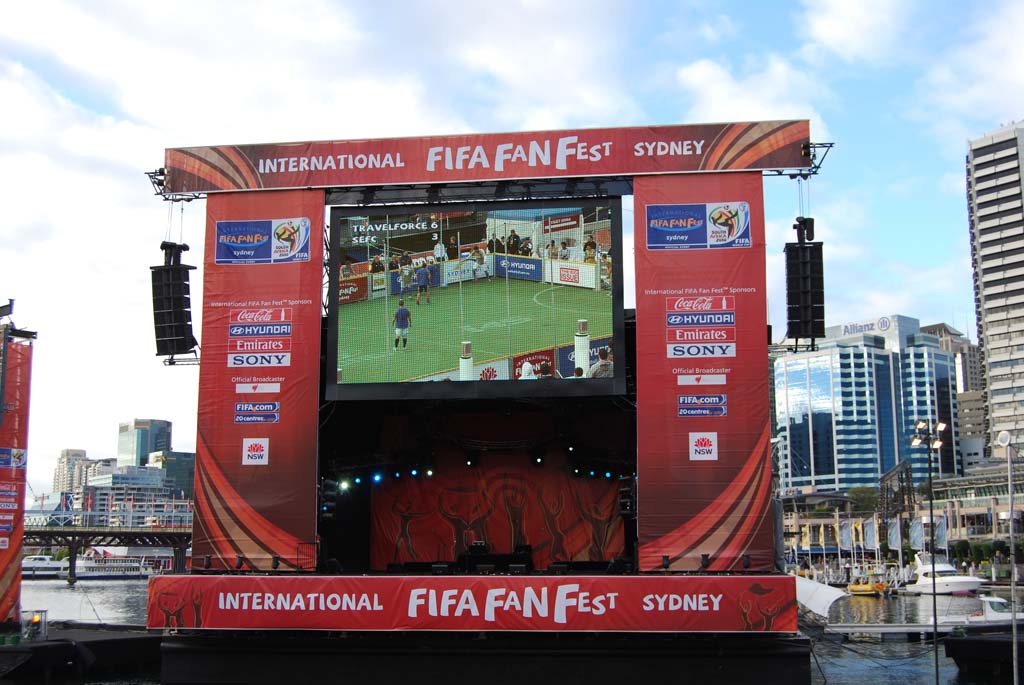

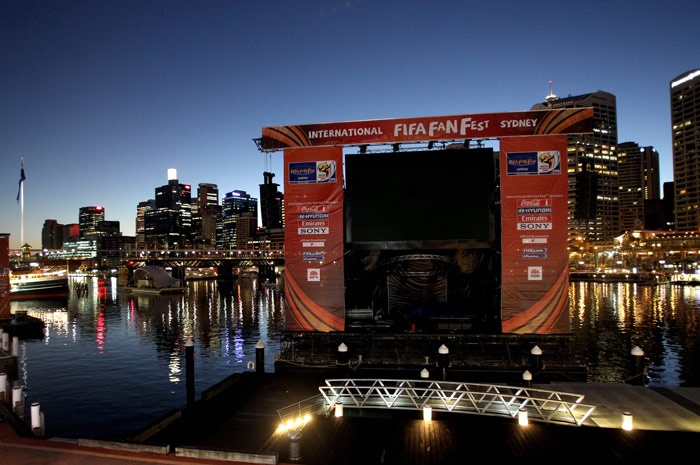

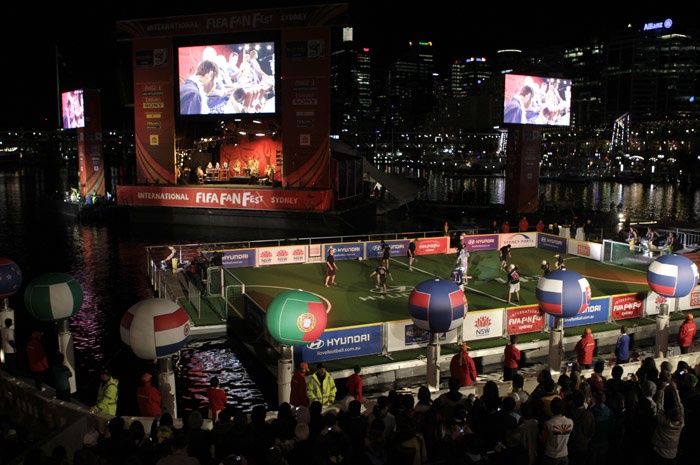

    While 32 nations played in the 2010 FIFA World Cup, Sydney was one of only six cities around the world to host an International FIFA Fan Fest. More than 500,000 people visited the Cockle Bay and Tumbalong Park sites, at Darling Harbour, where all 64 matches were broadcast live on four large screens.

    JPS provided sound reinforcement and crew for the 31 day event.

    Dates June 11, 2010 – July 12, 2010
    Sydney Darling Harbour
    JPS Crew
    Dean Mizzi, Matt Debien, Tristian Johnson, Adam Williams, Shane Oldham, Tim Seconi, Raoul Plimer
    Speaker System JBL VerTec
    18 x JBL VerTec 4889 Enclosures
    16 x JPS 18″ Subwoofers
    16 x Crown MA5002VZ
    FOH Drive System
    1 x Dolby Lake DLP 4D12 Mesa
    1 x Motion 1200 Wireless Tablet
    4 x BSS FDS-366 Omni Drives
    1 x BSS FCS-960 EQ
    4 x BSS FCS-926 Omni Drives
    FOH Control
    1 x Soundcraft Vi6
    1 x Yamaha M7CL 48 Ch Digital Console
    1 x Tascam CD-RW901SL
    2 x Denon DCD-695 CD Players
    Radio Mics
    9 x Shure UR4D Dual Receivers
    12 x ShureUR2 Hand Held Transmitters c/w Beta 58 capsules
    Monitor System
    12 x Clair Bros 12AM Monitor Speakers
    4 x Clair Bros R4 MkIII Side Fill Cabinets
    1 x Clair ML18 Subwoofer
    12 x Crown MA3600VZ Amplifiers
    4 x Crown MA9001 Amplifiers
    8 x Lake Clair iO’s
    6 x Sennheiser G2 IEM systems
    2 x Shure PSM 600 systems
    1 x Yamaha PM5D-RH Digital Console
  • Rugby League Grand Final 2009

    Rugby League Grand Final 2009

    More than 2.5 million Australians tuned it to see Melbourne’s premiership triumph over Parramatta – making it the most watched NRL grand final in three years. Jands provided the audio system and staff for the day’s entertainment, including performances by Wolfmother, Wes Carr and Mark Vincent.

    Date Sunday October 4, 2009
    Audio Crew Michael Waters, Garry Hall, Tim Lonigan, Adam Williams
      Bob Daniels, James Kohler, Tony Love, Andrea Le Roy
      Shane Oldham, Adam Smith
    Speaker System JBL Vertec
      42 x JBL Vertec 4889
      16 x JBL Vertec 4880
    Amplifiers 36 x Crown MA5002vz Amplifiers
    Control systems
    F.O.H. Digico D5 112EX Console
      Yamaha DM 1000
      Al Smart C2
      3 x Dennon CD Players
      1 x Tascam CD recorder
    FOH Drive System
      10 x BSS 366 Omni Drives
    Monitor System
      Yamaha PM-5D RH
      2 x Dolby DLP’s
      1 x BSS 366
      16 x Clair 12AM Wedges
      4 x L-Acoustics ARCS
      8 x Crown MA3600vz Amplifiers
      12 x Crown MA3600 Amplifiers
      3 x Lab Gruppen LA48 Amplifiers
