  • Deniliquin Ute Muster Festival 2009

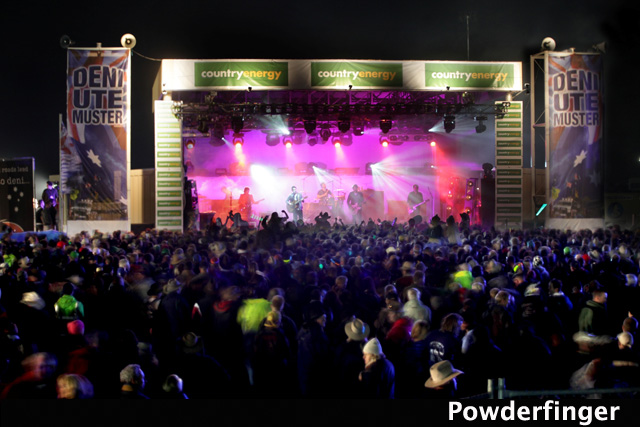

    The Deni Ute Muster kicked of in a big way this year with Powderfinger headlining the main stage and doing their only live show for the month.

    The system was a D&B J system with a XL4 console out front.

    Over 15,000 people turned out for one of the greatest ute musters thus far. Lots of utes and dust to boot! The Ute muster is rapidly becoming one of the great summer festivals on the Australian calendar and we look forward to many more years of dust and utes!

    JAS supplied a full production solution to the client including audio, lighting, stage and all production staff. Larry Ponting was the production manager and put the whole show together.

    Dates

    2-3 October 2009

    System

    36 x D&B J line
    18 x D & B B2 sub
    1 x XL4 FOH console
    Lots of fx and nice stuff
    1 x Yamaha PM5D
    16 x D&B M2 wedges

    JAS crew

    FOH system tech: Doug Pringle
    Monitor system Tech / operator: Mark Crawley
    Monitor system tech: Paul Kennedy
    Audio system tech: Jamie Davidson
    Audio system tech: Hayden Smith
    Audio system tech: Otavio ‘Guto!’ Santos

  • The Who 2009

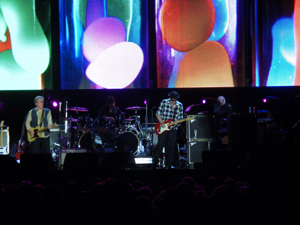

    Having recently purchased the D & B J system JAS was contacted by the Who to supply the system for their Australian tour. Paul Ramsay their FOH operator was keen to use the system if it was available as they had been using it worldwide. The tour consisted of arenas and some outdoor shows.

    The system also required 3 x Digico digital consoles and was the first, in Australia, to use the SD7.

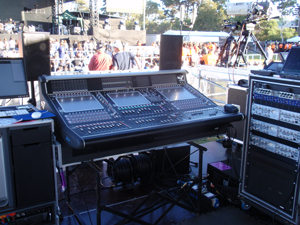

    The SD7 was doing the FOH duties and the 2 x D5 consoles were on monitors. All the consoles were running with dual racks (112chls) and we also supplied a recording system.

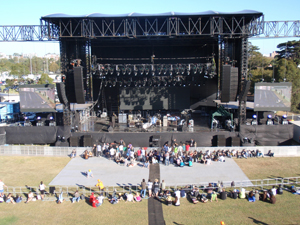

    The schedule also meant JAS needed to supply a 2nd L-Acoustics VDosc system due to an overnight run back to the Melbourne Grand Prix. At the Grand Prix the Who played to a crowd estimated at 40,000.

    The tour also featured the Counting Crows as support.

    Dates

    March 24, 26, 28, 29, 31
    April 4

    JAS Crew

    Craig Gordon – D&B J system tech
    Paul Kennedy – system rigger
    Connor Dune – monitor rigger

    Main touring System

    56 x D & B J speakers
    16 x D & B J-Sub
    12 x D & B B2 Sub
    8 x L-Acoustics ARCs

    Winery show duplicate system

    24 x L-Acoustics VDosc
    24 x Wayloud 218 subs
    8 x L-Acoustics ARCs

    FOH Consoles

    1 x Digico SD7 112ch system
    1 x Recording 112ch system
    1 x Nexo PS8 playback systems

    Monitor System

    2 x Digico D5 112ch systems
    1 x Nexo PS8 shout system

    Wedges

    16 x D&B M2 Wedges

    Sidefills

    8 x L-Acoustics ARCs
    2 x L-Acoustics DVsub

    Drumfill

    1 x D&B C4 sub

    Counting Crows JAS console package Perth

    2 x Digidesign Profile systems
    1 x Full stage patching system

  • Melbourne GP 2009

    British rock legends The Who performed a spectacular concert, to over 40,000, at the 2009 FORMULA 1 Australian Grand Prix.

    Date

    March 29

    JAS Crew

    Craig Gordon
    Connor Dune
    Paul Kennedy

    Main system

    54 x D & B J line array boxes
    16 x D & B J subs
    12 x D & B B2 subs

    Delay system

    16 x L-Acoustics VDosc

    GP Side Track

    JAS also supplied a Nexo Alpha system with Digidesign consoles for The Future Music Side Track event. With various acts including Sneaky Sound system the tent went off.

  • Coldplay 2009

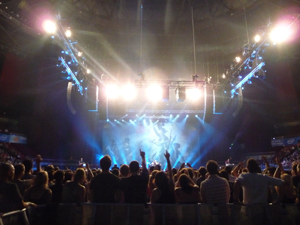

    Coldplay returned to Australia for another sold-out tour in Feb 2009. As Coldplay like numerous other acts are using the D&B J system, JAS was commissioned to supply our largest arena system to date.

    The system design, handled by Tony Smith who has been with the band for many years, was in a 270 ° 6 hang setup with 2 delays down the room.

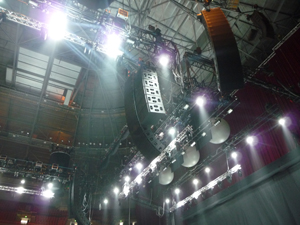

    The system was made up of of 4 x 16 deep hangs of J8 & J12 with 12 x flown J-Subs. The outer 270 ° hangs were 2 x dVDosc subs and 8 x dVDosc boxes each. The 2 x delays up the room consisted of 4 x J8 boxes per hang. The delays had a 40m trussing system running down the room to supply the power and signal.

    Coldplay brought their own Digidesign Venue D-Show console packages which were supplied by Wigam UK.

    The band used a full in-ear monitoring system so no monitors were needed other than for the opening acts which used a JAS “Wayloud” monitor system with Yamaha M7CL consoles.

    Dates

    February 27 – March 12

    System

    72 x d&b J speakers
    12 x d&b J-Sub
    8 x d&b B2 Sub
    4 x L=Acoustics dV-sub
    16 x dVDosc

    JAS Crew

    Paul Gould – JAS audio chief / rigger
    Eric Sanderson-Evans – d&b J system tech
    Craig Gordon – system rigger
    Connor Dune – monitor rigger
