  • Big Day Out 2014

    Orange & Blue Stages

    Australia’s foremost music festival, The Big Day Out, debuted on the 1992 Australia Day public holiday in Sydney and expanded to Adelaide, Melbourne and Perth by the following year. The Gold Coast and Auckland were added to the schedule in 1994. As of 2003, it has featured seven or eight stages (depending on the venue) accommodating popular contemporary rock music, electronic music, mainstream international acts and local acts.

    JPJ Audio (previously trading as Jands Production Services and Johnston Audio) has provided the sound systems for every Big Day Out show since 1992 and 2014 was no exception. The festival usually takes place in late January and this year was held in four Australian cities: Gold Coast (Jan 19), Melbourne (Jan 24), Sydney (Jan 26), Adelaide (Jan 31) and Perth (Feb 2).

    Orange / Blue Stages – FOH Speaker System
    • 68 L-Acoustics V-DOSC Enclosures
    • 48 L-Acoustics SB218 Sublow Enclosures
    • 18 Amplifier Rack, L-Acoustics (4x5002VZ)
    • 4 Amplifier Rack, L-Acoustics (2x5002VZ)
    • FOH Speaker System Delays
    • 18 L-Acoustics Kudo Enclosures
    • 2 Amplifier Rack L-Acoustics LA-RAK (3xLA8)
    • FOH Drive
    • 1 Midas PRO1 Digital Mixing Console
    • 1 L-Acoustics V-DOSC Drive Rack (4xDolby)
    • Blue Stage FOH Control
    • 1 Digidesign Profile Control Surface
    • 1 Digidesign Venue FOH Local Rack
    • 5 Digidesign DSP Mix Engine
    • 1 Midas PRO2C Digital Mixing Console
    • Monitor Speaker System
    • 18 d&b M2 Monitor Enclosure
    • 2 d&b Q-SUB Sublow Enclosure
    • 6 L-Acoustics ARCS Enclosure
    • 4 L-Acoustics dV-SUB Sublow Enclosure
    • 3 Amplifier Rack, 4mix d&b D-12
    • 12 d&b D-12 2ch Amplifier
    • 2 Amplifier Rack, ARCS (2xLA48+366)
    • Monitor Control
    • 1 Yamaha PM5D-RH Digital Console
    • Orange Stage Control
    • FOH Control
    • 1 Digidesign Venue Digital Console System
    • 1 Digidesign Profile Control Surface
    • 1 Digidesign Venue FOH Local Rack
    • 1 Digidesign Venue Stage Rack
    • Monitor Speaker System
    • 16 Clair Bros 12AM Monitor Speaker Enclosure
    • 3 Amplifier Rack, 4mix 12AM (Crown 3600)
    • 2 Clair Bros ML18 Sublow Enclosure
    • 2 Amplifier Rack, ML18 (Crown MA9000i)
    • 6 L-Acoustics ARCS Enclosure
    • 4 L-Acoustics dV-SUB Sublow Enclosure
    • 2 Amplifier Rack, ARCS (2xLA48+366)
    • Monitor Control
    • 1 Yamaha PM5D-RH Digital Console
    • 1 Yamaha PM5D Power Supply Rack
    • Red Stage
    • FOH Speaker System
    • 18 JBL VERTEC 4889
    • 16 JBL VERTEC 4880
    • FOH Control
    • 1 Digidesign Venue Digital Console System
    • 1 Digidesign Profile Control Surface
    • 1 Digidesign Venue FOH Local Rack
    • 1 Digidesign Venue Stage Rack (48in, 32out)
    • Monitor Control
    • 1 Digidesign Venue Digital Console System
    • 1 Digidesign Profile Control Surface
    • 1 Digidesign Venue FOH Local Rack
    • 1 Digidesign Venue Stage Rack (48in, 32out)
    • Monitor Speaker System
    • 14 Clair Bros 12AM Monitor Speaker Enclosure
    • 1 L-Acoustics dV-SUB Sublow Enclosure
    • 1 Amplifier Sleeve, dV-SUB (1xLA8)
    • 2 Amplifier Rack, 4mix 12AM (Crest)
    • Sidefill
    • 6 L-Acoustics dV-DOSC Enclosure
    • 2 L-Acoustics dV-SUB Sublow Enclosure
    • 1 Amplifier Rack, L-Acoustics 115XT HI-Q (4 mix LA8)
    • Boiler Room FOH Speaker System
    • 18 L-Acoustics V-DOSC Enclosure
    • 6 L-Acoustics dV-DOSC Enclosure
    • 8 L-Acoustics ARCS Enclosure
    • 16 L-Acoustics SB218 Sublow Enclosure
    • 6 Amplifier Rack, L-Acoustics (4x5002VZ)
    • 4 Amplifier Rack, L-Acoustics (2x5002VZ)
    • 1 L-Acoustics V-DOSC Drive Rack (4xDolby)
    • FOH Control
    • 1 Digidesign Venue Digital Console System
    • 1 Digidesign Profile Control Surface
    • 1 Yamaha O1V96 Digital Console (16 Mono + 4 Stereo)
    • Monitor Speaker System
    • 14 Clair Bros 12AM Monitor Speaker Enclosure
    • 2 Amplifier Rack, 4mix 12AM (Crown 3600)
    • 4 Clair Bros R4 Mk III Speaker Enclosure
    • 1 Amplifier Rack, R4 (Crown MA9000i)
    • 6 Clair Bros ML18 Sublow Enclosure
    • 2 Amplifier Rack, ML18 (Crown MA9000i)
    • Monitor Control
    • 1 Yamaha PM5D-RH Digital Console
    • 1 Yamaha O1V96 Digital Console (16 Mono + 4 Stereo)
    • DJ Monitors
    • 9 L-Acoustics dV-DOSC Enclosure
    • 6 L-Acoustics dV-SUB Sublow Enclosure
    • 2 Amplifier Rack, L-Acoustics 115XT HI-Q (4 mix LA8)
    • 2 Amplifier Sleeve, dV-SUB (1xLA8)
    JPJ Crew
    • FOH System Engineers
    • John Kerns
    • Tim Millikan
    • Brendan Keane
    • Tim Seconi
    • Monitor System Engineers
    • Paul Kennedy
    • Tristan Johnson
    • Tristan Farrow
    • Josh Andre
    • Stage Technicians
    • Duncan Kaye
    • Dean Marquis
    • Matthew Morrison
    • Alex McCormack
    • Aaron Casley
    • Wayne Mulder
    • Jorgia Galbraith
    • Tim Jones


    Gallery – All photos ©Daniel Boud

  • Clients Summer 2011

    Clients Summer 2011

    It was a busy summer for JPJ Audio, the merged operation of Jands Production Services and Johnston Audio. JPJ Audio provided audio and production services for theatre shows, television spectaculars, corporate events and numerous concerts. Here’s some of the shows we worked on:

    Festivals Theatre / Television House Systems
    Big Day Out Hairspray the Musical Luna Park Big Top
    Good Vibrations Festival The Boy From Oz State Theatre Sydney
    Laneway Festival Music of Andrew Lloyd  Webber Hordern Pavilion
    Sound Wave Festival Dr Zhivargo
    Future Music Festival Australia’s Got Talent
    Sound Relief 2 River Dance
    Concerts and Tours Concerts and Tours Corporate Events
    Bear Grylls Billy Connolly Live at the Apple Store
    Chris Isaak Cyndi Lauper Australia Day Live-Canberra
    Foo Fighters Live on the Harbour INXS Rose Bay Flood Relief
    Joe Cocker Kool and the Gang Mardi Gras
    Lionel Ritichie Nitro Circus Regional Tour Top Gear Live
    Ragga-muffin Rihanna Silver Party
    Santana Sting Symphonicity Tour The Sydney Kings
    Stone Temple Pilots Take 40 Live Lounge Sydney Myer
    Clipsal 500 V8 Race Concerts Usher at Acer Arena David Jones

  • Summer / Autumn 2009

    It’s been a busy summer and start to autumn for Jands Production Services. In addition to the massive V and Big Day Out festivals, JPS provided audio and production services for theatre shows, television spectaculars, corporate events and numerous concerts. Here’s some of the shows we’ve been working on:

    The V Festival MTV Awards The Big Top @ Luna Park
    Festivals Theatre / Television House Systems
    Virgin V Festival MTV Music Awards Luna Park Big Top
    Big Day Out Main Stages Breast Wishes Sydney Entertainment Centre
    East Coast Blues Festival Sydney Dance Company Sydney State Theatre
    Good Vibrations – We Unfold
    Tropfest 2009 Winds of Shaolin
    Kings of Leon V International Airline
    Concerts and Tours Corporate Events
    Abbamania Big Day Out Boiler Room Australia DVD Launch
    Blues Traveller Chick Corea Next Top Model Launch
    Chris Isaak Counting Crows Bacardi Express
    Delta Goodrem Duffy Fashion Week
    Eric Clapton Fall Out Boy Foxtel
    Jackson Browne Kings of Leon Hillsong Conference
    Lucinda Williams Madness IGA Global Summit
    Midnight Oil Morning of the Earth Myer Fashion Parades
    Naturally Seven Simply Red NRL Season Launch
    Snow Patrol Sound Relief The Red Awards
    Sounds of Q Dance Taylor Swift Sony
    Tina Arena The Fray Virgin Int’l Airline Launch
    The Killers The Veronicas Wolverine Movie Launch
    Top Gear   Live at the Apple Store
        – Amanda Baker
    – Ben Lee
    – Sia
    – Wes Carr
  • Future Music Festival 2009

    JAS audio supplied the audio for Melbourne’s Future Music Festival and the move from the Myer Music Bowl over to the Flemington race track increased the audience to around 35,000.

    For the main stages in Melbourne and Sydney a Nexo Geo T system was used while L-Acoustics VDosc was used for the main stages in Brisbane and Adelaide.

    Dates

    February 28
    March 1, 7-9

    Melbourne Future Festival

    Main stage

    32 x Nexo Geo T
    16 x Nexo C-D 18 subs
    32 x Camco Vortex 6 amplifiers

    FOH

    1 x Midas XL4
    1 x Digidesign profile console

    Monitors

    1 x Midas H3000
    1 x Digidesign profile console
    16 x Wayloud Wedges
    2 x Nexo Alpha E side-fill systems

    God’s kitchen stage

    16 x L-Acoustics VDosc
    12 x Wayloud 218 subs

    Consoles

    2 x Yamaha PM5D

    Monitors

    16 x PS15 wedges

    Yellow stage

    16 x Nexo Alpha
    8 x Nexo Alpha S2

    Sydney Future Festival

    Main stage

    32 x Nexo Geo T
    16 x Nexo C-D 18 subs
    32 x Camco Vortex 6 amplifiers

    FOH

    1 x Midas XL4
    1 x Digidesign Profile console

    Monitors

    1 x Midas H3000
    1 x Digidesgin Profile console
    16 x Wayloud Wedges
    2 x Nexo Alpha E side-fill systems

    Godskitchen stage

    16 x L-Acoustics VDosc
    12 x Wayloud 218 subs

    Consoles

    2 x Yamaha PM5D

    Monitors

    16 x PS15 wedges

    Brisbane Future Festival

    Main Stage

    16 x L-Acoustics VDosc
    16 x Wayloud 218 subs
    6 x L-Acoustics ARCs

    FOH

    1 x Midas XL4
    1 x Digidesign Profile console

    Monitors

    1 x Midas H3000
    1 x Digidesign Profile console
    16 x Wayloud Wedges
    2 x Nexo Alpha E side-fill systems

    Adelaide Future Festival

    Main Stage

    16 x L-Acoustics VDosc
    16 x Wayloud 218 subs
    6 x L-Acoustics ARCs

    FOH

    1 x Midas XL4
    1 x Digidesign Profile console

    Monitors

    1 x Midas H3000
    1 x Digidesign Profile console
    16 x Wayloud Wedges
    2 x Nexo Alpha E side-fill systems

    NERD Touring package

    2 x Digidesgin Profile console
    4 x Sennheiser G2 in-ears systems
    4 x Shure U4D Radio mic systems

  • Rock Isle Mulwala Festival 1972

    The Rock Isle Mulwala Festival was held over the Easter weekend (31 March – 2 April 1972) and featured local bands including: Russell Morris, Lobby Loyde, Leo De Castro and Friends, Country Radio, Chain, Carson, Taman Shud and The Aztecs. The festival also featured, Canned Heat and Steven Stills band Manassas, with Chris Hilman.

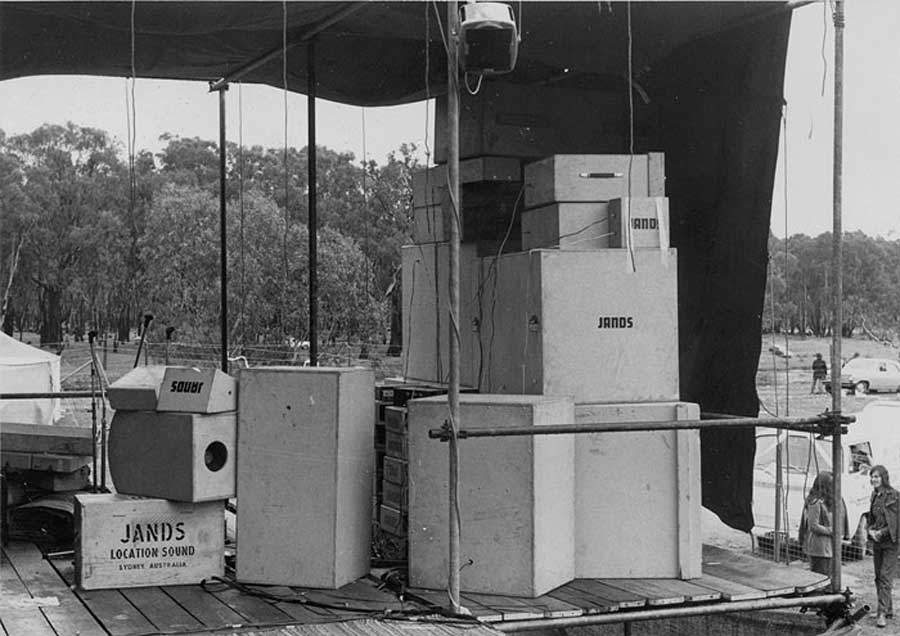

    Sound System (each side)

    2 x Jands Hurler c/w 4 x JBL 2225
    1 x JBL 4550 c/w 2 x JBL K130
    2 x Jands 4580 c/w 2 x JBL K120
    2 x JBL 2350 90 Horn with 2480 Driver
    2 x JBL 2355 60 Horn with 2440 Driver
    1 x JBL 2360 Long Throw Horn with 2480 Driver
    2 x HF enclosures each with 2 x JBL 2402
    2 x HF enclosures each with 2 x JBL 2405
    24 x Jands 150w Power Amplifiers

    Jands Crew

    Howard Page, Phillip Storey, David Mulholland, Eric Robinson, Paul Mulholland, Edward Robinson, Andrew Batchelor.

    Images – click to enlarge

    YouTube
    GTK: Stephen Stills & Manassas Live at Mulwala 1972

  • Sunbury 1972

    The Sunbury Rock Festival was first held in 1972 on a 620 acre farm between Sunbury and Diggers Rest, Victoria. It attracted around 35,000 people and was promoted by Odessa Promotions, which was formed by a group of television professionals, including John Fowler and Jim McKay, from GTV 9 Melbourne.

    The festival ran from 29 to 31 January and the ticket price was $6.00 for all 3 days, $5.00 for 2 days and $1.00 for a single day.

    Sound System

    2 x RCA W Bin with 2 x 15″ JBL K140
    4 x Jands U Bin with 2 x 15″ JBL K130
    2 x JBL 2350 90° horns with 2480 2″ drivers
    2 x JBL 2356 long-throw horns with 2480 2″ drivers
    8 x JBL 2405 high frequency drivers
    10 x Jands 150w Power Amplifiers
    1 x 20 Channel Jands Mixing Console

    Jands Crew

    David Mulholland
    Howard Page
    Eric Robinson
    Philip Story

    Click images to enlarge

    Acts

    Blackfeather
    The Bushwhackers & Bullockies Bush Band
    The Captain Matchbox Whoopee Band
    Glenn Cardier
    Carson
    Chain
    Company Caine
    Greg Quill & Country Radio
    Friends
    Healing Force
    Highway
    Gerry Humphrys (MC)
    Indelible Murtceps
    The La De Das
    MacKenzie Theory
    Madder Lake
    Phil Manning
    Max Merritt & the Meteors
    Mulga Bill’s Bicycle Band
    Barrie McAskill & Levi Smith’s Clefs
    Pilgrimage
    Pirana
    Wendy Saddington
    SCRA
    Spectrum
    Tamam Shud
    Billy Thorpe & The Aztecs
    Total Fire Band
    Wild Cherries

  • The Fairlight Festival 1971

    Fairlight Festival Stage
    Photo courtesy of ©1971 Greg Dickins

    In January 1971 Jands provided stage and effects lighting for the first Fairlight Festival. The equipment consisted of Strand Patt 223 & 123 fresnels, Patt 23 & 23N profile spots and Patt 63 multi-cell ground rows. Kodak Carousel projectors loaded with hand painted sides and 3M overhead projectors with non mixing dyes manipulated in clock faces were used to project a ‘liquid lightshow’ onto three parachutes hung at the rear of the stage.

    Video
    • Fairlight video
    Gallery
    • Fairlight Festival lighting equipment


    References

    In an article on the Milesago website Terry Stacey writes:

    The Fairlight Festival was held (in) 1971 and boasted a strong line-up of Sydney-based bands. Although advertised as “The Timeless Trip”, this early Australian rock festival was in fact a bit of a bummer, and like the ill-fated Mulwala Festival the following year, it was marred by those all-too-familiar festival hassles – poor organization, meagre facilities, bad weather and too much alcohol.

    Fairlight is about 10 kms south of Mittagong, which itself is about 100 kms South of Sydney. The site was on a property (reputedly once an Aboriginal tribal ground) about 2 kms east of where the present M4 Motorway crosses the Old Hume Highway. Organisers provided the bare minimum of facilities – no showers, primitive toilets and a few drums of drinking water.

    Announcer Jeff Canters ambitiously started the festival on time at 10am Saturday – even though the (Betts) amplifiers had not yet arrived! First up was Jeannie Lewis who did an acoustic set (not surprising given the lack of sound gear at that stage). Once the amps arrived The Cleves did a rollicking set, followed by Khavas Jute who maintained the energy, although their set was shortened as they had to go on to another gig.

    However their lead guitarist Dennis Wilson impressed the crowd with his wah-wah guitar work. Steve Phillipson, ex-Velvet Underground vocalist), entertained the restless crowd with a solo acoustic set (a la John Sebastian) later in the evening. He was followed by Sydney band Wildwood who presented a set of Steppenwolf and Three Dog Night covers.

    Their improvised lead guitar solo went down particularly well. Blackfeather’s set kept a high going. Tamam Shud who went on at midnight bravely, or madly, depending how you look at it, played on through a torrential rainstorm.

    Because of the bad weather, Sunday morning’s planned “Dawn Ritual” was abandoned. Instead a bunch of the musos played a ninety-minute improvised set. This was followed by a jam by Nutwood Rug, but by then most of the 4000-strong audience had left.

    The police who attended busted some dope-smokers during the festival but the audience was largely comprised of “drunken yobbos”. Like Ourimbah, a lot of rubbish was left behind after it had finished. Typically, the organisers had made no provision for the possibility of rain which, being the Southern Highlands at Easter, it did copiously, leaving the crowd to slosh around in large quantities of mud on the second day. This scenario would be repeated at Mulawa, held almost exactly a year later. To top it all off the organisers had $4000 stolen.

    Reviewing the event in Go-Set filmmaker Albie Thoms commented: “If this was a demonstration of the new life-style, then it was right off.

    Artists

    Jeannie Lewis, The Cleves, Khavas Jute, Galadriel, Steve Phillipson, Wildwood. Blackfeather. Tamam Shud, Nutwood Rug Band.

    Jands Crew

    David Mulholland, Paul Mulholland, Eric Robinson.
